Oil-injected screw compressors 4 to 13 bar

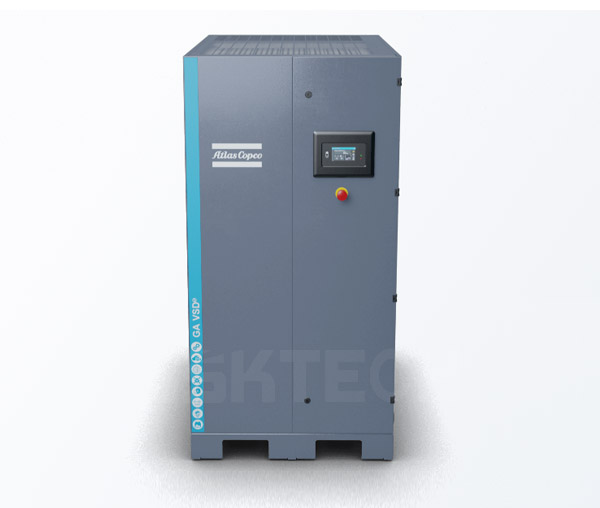

When you need the best,choose VSDˢ-Variable Speed Drive compressor.The GA 5-37 VSDˢoffers significant energy savings up to 60%compared to fixed-speed models,making it a highly efficient compressor that stands out in the market.It also raises the bar in performance,reliability and connectivity to support your sustainability and productivity goals–now and in the future.
Designed for energy efficiency
Are you looking for a groundbreaking compressor that delivers industry-leading performance?You’ve found it.
The GA 5-37 VSDˢseries showcases revolutionary technology that considerably reduces energy use.The variable speed drive(VSD)device adapts the motor speed to fluctuations in compressed air demand.This means you always have as much energy as you need-no more,no less.
What does this mean for your business?
More efficient,reliable and sustainable production.
The GA VSDˢdeliver industry-leading performance with a focus on sustainability and efficiency.
Our engineers worked diligently to drive innovation wherever possible,resulting in various cutting-edge technologies that benefit your business,your bottom line,and the environment.
The GA VSDˢcomes with Boost Flow Mode.
As well as the Smart Temperature Control System with sophisticated coordination between the
Elektronikon®controller,
the Neos Next inverter,
the Smart Thermostatic Control valve,
and the VSD fan.
Sustainable delivery
With the GA 5-37 VSDˢyou can expect double-digit reductions in energy use to lower your emissions.In addition,careful use of resources and minimal number of components.
Highly Energy-Efficient
The GA VSDˢgrants energy savings up to 60%(compared to fixed-speed models).With up to 80%heat recovery,it provides even more energy savings.In addition,the advanced connectivity features maximize efficiency.
Cutting-edge technology
Smart Temperature Control System
The GA VSDˢis the first compressor to offer full injection control to eliminate the risk of condensation and maximize compression efficiency.
Boost flow mode
Allowing you to temporarily stretch the limit of your compressor without negative operational or reliability consequences.While with other compressors,exceeding the maximum capacity means loss of pressure and possibly a production shutdown.

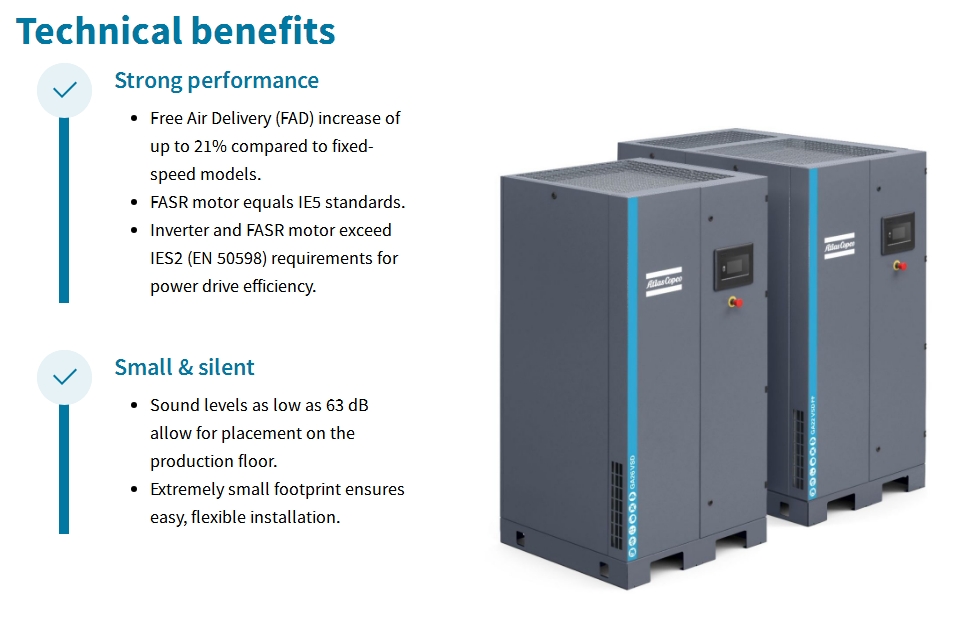

Technical benefits
Strong performance
Free Air Delivery(FAD)increase of up to 21%compared to fixed-speed models.
FASR motor equals IE5 standards.
Inverter and FASR motor exceed IES2(EN 50598)requirements for power drive efficiency.
Small&silent
Sound levels as low as 63 dB allow for placement on the production floor.
Extremely small footprint ensures easy,flexible installation.

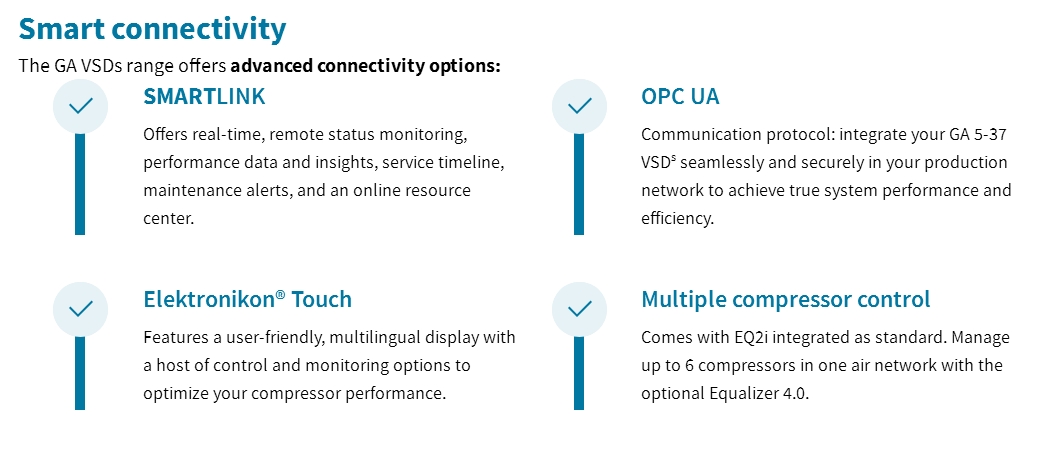

Smart connectivity
The GA VSDs range offers advanced connectivity options:
SMARTLINK
Offers real-time,remote status monitoring,performance data and insights,service timeline,maintenance alerts,and an online resource center.
OPC UA
Communication protocol:integrate your GA 5-37 VSDˢseamlessly and securely in your production network to achieve true system performance and efficiency.
Elektronikon®Touch
Features a user-friendly,multilingual display with a host of control and monitoring options to optimize your compressor performance.
Multiple compressor control
Comes with EQ2i integrated as standard.Manage up to 6 compressors in one air network with the optional Equalizer 4.0.
